Product Specifications
Higher Current Capacity
- Rated for DC 20V / 5.0A max, supporting higher power transmission compared to standard pogo pin designs.
Stable Electrical Performance
- Contact Resistance: ≤ 50 mΩ at working height
- Optimized gold plating over nickel ensures low resistance and consistent conductivity.
Precision Mechanical Design
- Working Stroke: 1.50 mm
- Full Stroke: 2.00 mm
- Spring Force: 50–70 gf at normal working height
- Contact Retention Force: ≥300 gf per pin for secure engagement
Durability & Reliability
- Rated for 10,000 mating cycles minimum, ideal for controlled insertion applications.
High-Temperature & Environmental Resistance
- Operating Temperature: –35°C to +105°C
- Humidity Range: 10% RH – 90% RH
- Salt Spray Resistance: 48 hours
- PCB peak temperature withstands 260±5°C for 10 seconds, suitable for reflow processes.
Safety & Compliance
- Time delay circuit recommended for currents above 1A to prevent arcing
- Power should be applied only after full connector mating
- RoHS & REACH compliant

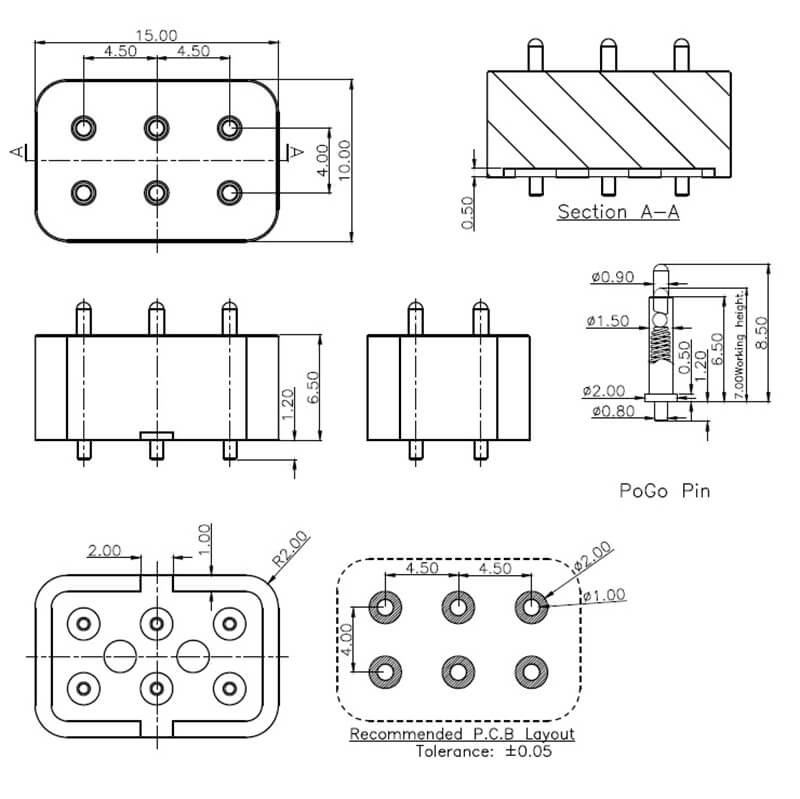

Materials & Plating Structure
| Part Name | Qty | Material | Plated Surface |
|---|---|---|---|
| Plunger | 6 | Brass | Au 10μ” Min. over 50μ” Min. Ni |
| Barrel | 6 | Brass | Au 5μ” Min. over 50μ” Min. Ni |
| Spring | 6 | SUS304 | N/A |
| Ball | 6 | Brass | Au 5μ” Min. over 50μ” Min. Ni |
| Housing | 1 | HTN | UL94 V-0, Black |
High Current Pogo Pin – 5A High-Temperature Rated
The High Current Pogo Pin from Promax Pogo Pin is a high-reliability, spring-loaded electrical contact designed for higher current density, compact travel, and elevated temperature environments. Engineered for power delivery and signal stability, this pogo pin is ideal for applications requiring up to 5A current, precise compression control, and dependable long-term performance.
This model stands out for its DC 20V / 5.0A rating, short working stroke, and high-temperature board endurance, making it well suited for power interfaces, charging contacts, and industrial electronics operating under demanding conditions.
Typical Applications
- Power & Charging Interfaces
High-current pogo pin charging contacts, docking stations, and power transfer interfaces. - Industrial & Embedded Systems
Compact power connections in automation equipment, controllers, and industrial electronics. - Test & Fixture Solutions
Reliable power contacts for functional testing, validation fixtures, and burn-in systems.
Why Choose This Pogo Pin?
This model is ideal when your application requires:
- Higher current (up to 5A)
- Short, controlled compression travel
- High temperature resistance for PCB assembly
- Secure mechanical retention with consistent electrical performance
At Promax Pogo Pin, we design pogo pins that balance electrical efficiency, mechanical precision, and manufacturing reliability, helping your products perform consistently in real-world conditions.
