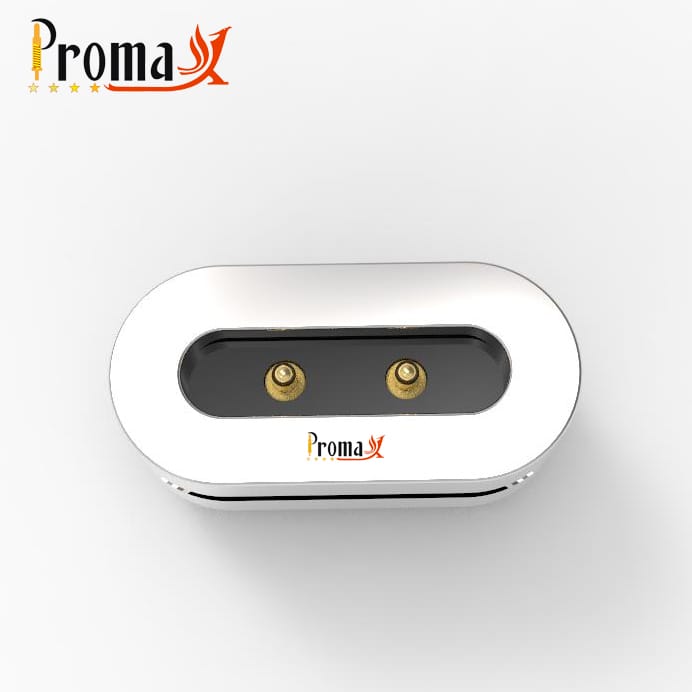

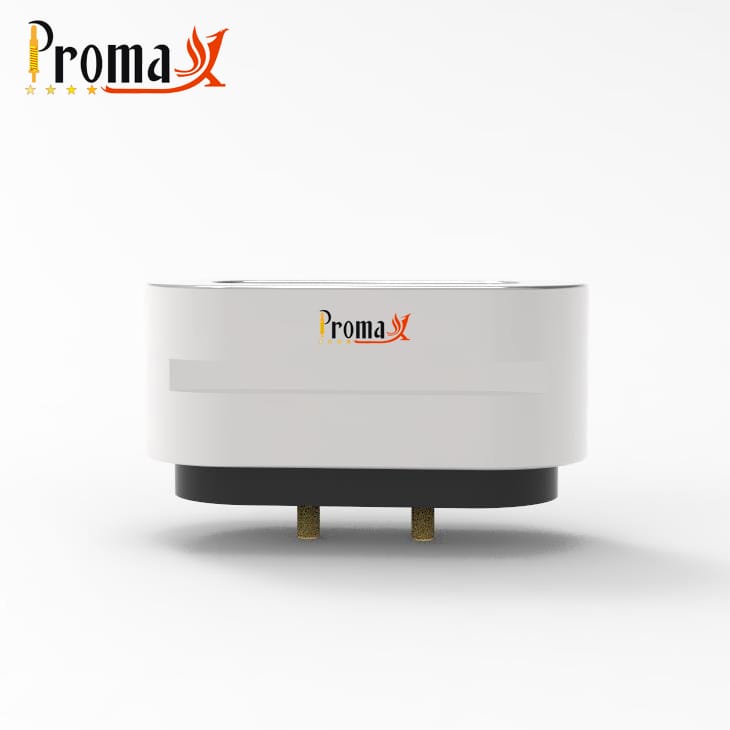

2Pin Magnetic connector NC6266-02PA

Plating: Gold plated (According to customer requirements)

Rated voltage (each contact): 12V

Rated current (each contact): 2A

Mechanical life: 10000 times

Operating temperature range: – 25 ~ 85 °

Humidity range: 10%RH~90%RH

Spring Force: 50gf ± 10gf

GET QUOTE

Category: Magnetic connector 2Pin

Description

Product Introduction

NC6266-02PA is a magnetic Pogo connector produced by Promax Pogo Pin. The 2 Pin magnetic connector combines fashion-forward design with cutting-edge technology. Its user-oriented design enhances the overall electronic product experience.

This connector excels not only in high-frequency signal transmission but also in delivering more than 25A current for efficient charging. Additionally, it supports high-speed data transmission, enabling fast charging and other functionalities.

The magnetic attraction feature adds to its elegant appearance and effectively addresses the common issue of accidentally pulling and damaging charging cables from high-end devices like laptops and mobile phones.

Customized Service

Customization is fully supported with our magnetic connectors. Each connector is equipped with an exceptional N52 super magnet, ensuring top-notch performance. Our team comprises skilled and experienced engineers who excel in providing reliable and precision-made interconnect solutions.

We take pride in offering not only our standard products but also assisting with your specific design requirements. If you need a tailor-made magnetic power connector, don’t hesitate to get in touch with Promax Pogo Pin. We are here to fulfill your unique needs and ensure a seamless ordering process.

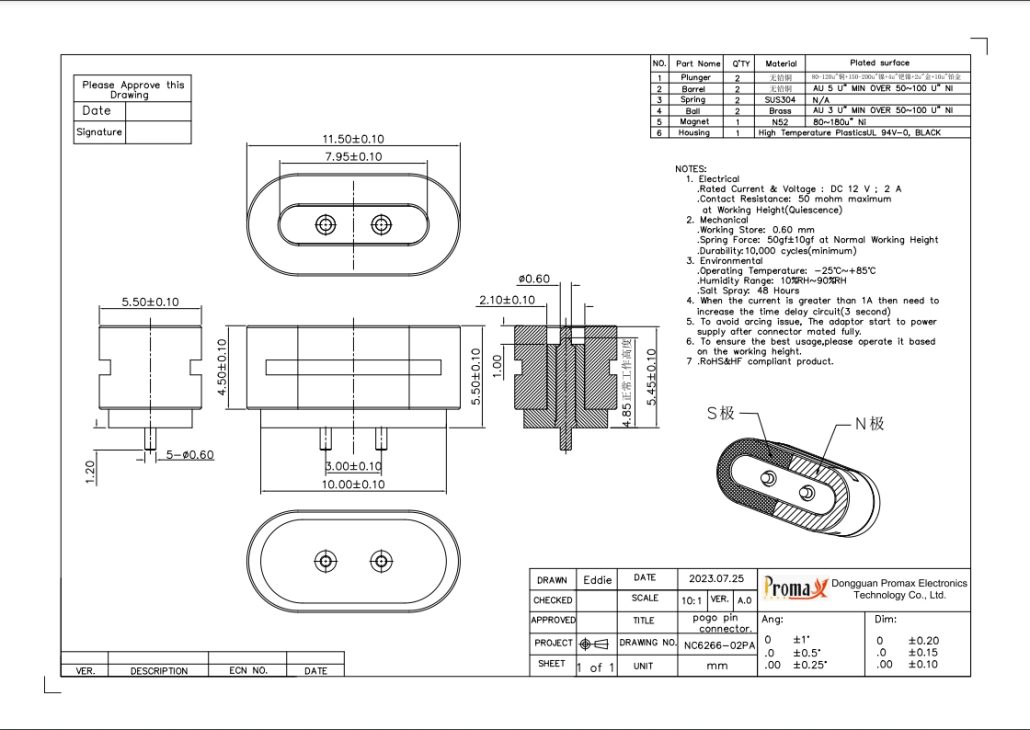

Product Parameters

NOTE
Rated Voltage(Per Contact):	12Volts
Rated Current(Per Contact):	2A maximum
Contact Resistance:	50 mohm maximum
Working Temperature Range:	-25 ~ 85 °
Humidity Range:	10%RH~90%RH
Mechanical Life:	10000 times

Documents

Application

Promax Pogo Pin‘s pogo pin, magnetic attraction connector, and magnetic attraction data line products can be applied to unlimited applications. The following are just some examples of how to use the product. Please feel free to contact Promax Pogo Pin for more details
