SMD/SMT Pogo pin NC1918-01-B.1

Product Introduction

Pogo Pin is a Spring type probe formed by a spring loaded plunger pin, a spring loaded locking pin, and a spring three basic components through high precision equipment rivet pressure, also known as Spring needle, Spring probe, Spring Loaded Pin, PogoPin connector.

The bottom of the Pogo Pin’s Plunger is usually a bevel structure, which ensures that the Pogo Pin keeps the Plunger in contact with the inner wall of the Locking as it works, The current is passed primarily through the gold-plated Plunger and Locking to ensure the Pogo Pin is stable and has low impedance.

Customized Service

Customization is fully supported with our Pogo Pin. Our team comprises skilled and experienced engineers who excel in providing reliable and precision-made interconnect solutions. We pride ourselves on offering our standard products and assisting with your design requirements. If you need a tailor-made magnetic power connector, don’t hesitate to contact Promax Pogo Pin. We are here to fulfill your unique needs and ensure a seamless ordering process.

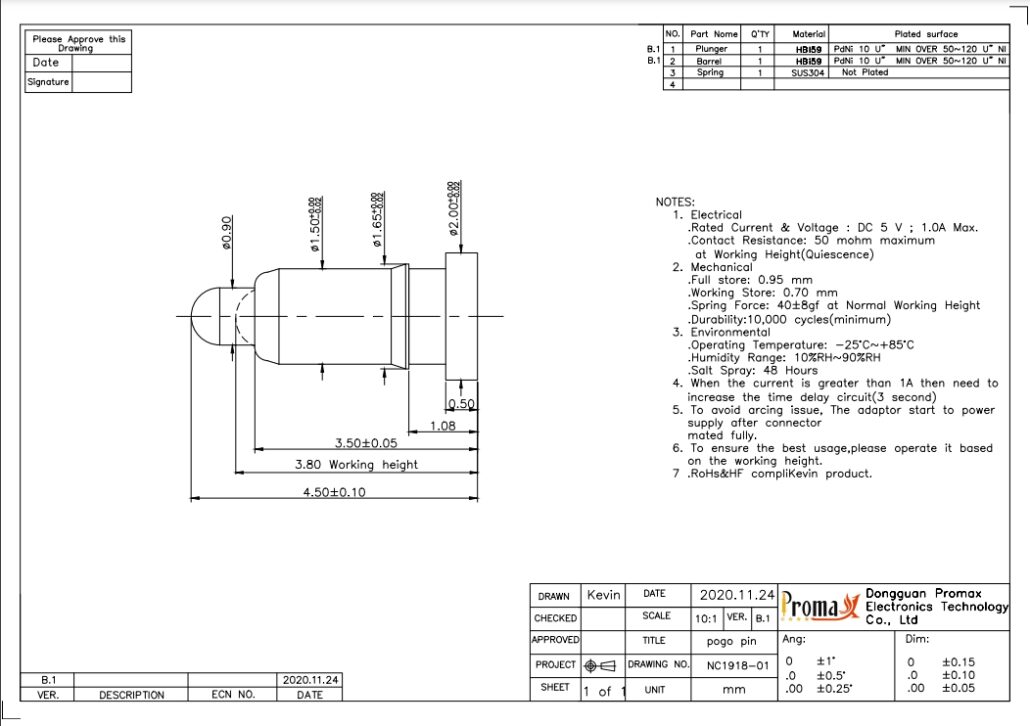

Product Parameters

Documents

Application

Promax Pogo Pin‘s pogo pin, magnetic attraction connector, and magnetic attraction data line products can be used for unlimited purposes. The following are just some examples of how to use the product. Please feel free to contact Promax Pogo Pin for more details

• Consumer electronics / smart wearable devices
• Digital cameras / medical devices / electrical appliances
• New energy vehicle/telephone application
• Smart water cup/car charging/air purifier
• Power bank / digital products / small household appliances
• Charging products/signal transmission products etc

5G base station

new energy charging pile

smart electronic door lock
