Robot Pogo Pins | For The Toughest Environments

Robot pogo pins are spring-loaded connectors designed for reliable electrical connections in demanding robotic environments. These connectors deliver durability, modularity, and consistent performance even when facing constant vibration, thermal expansion from temperature swings, or mechanical misalignment that would cause standard connectors to fail.

What sets them apart is their ability to handle both power and signal transmission through the same connector interface. This dual capability makes robot pogo pins ideal for tool changers where robots swap attachments on the fly, sensor arrays requiring uninterrupted data transmission, battery docking stations pulling high current loads, and automated testing equipment where a single connection failure means downtime and lost productivity.

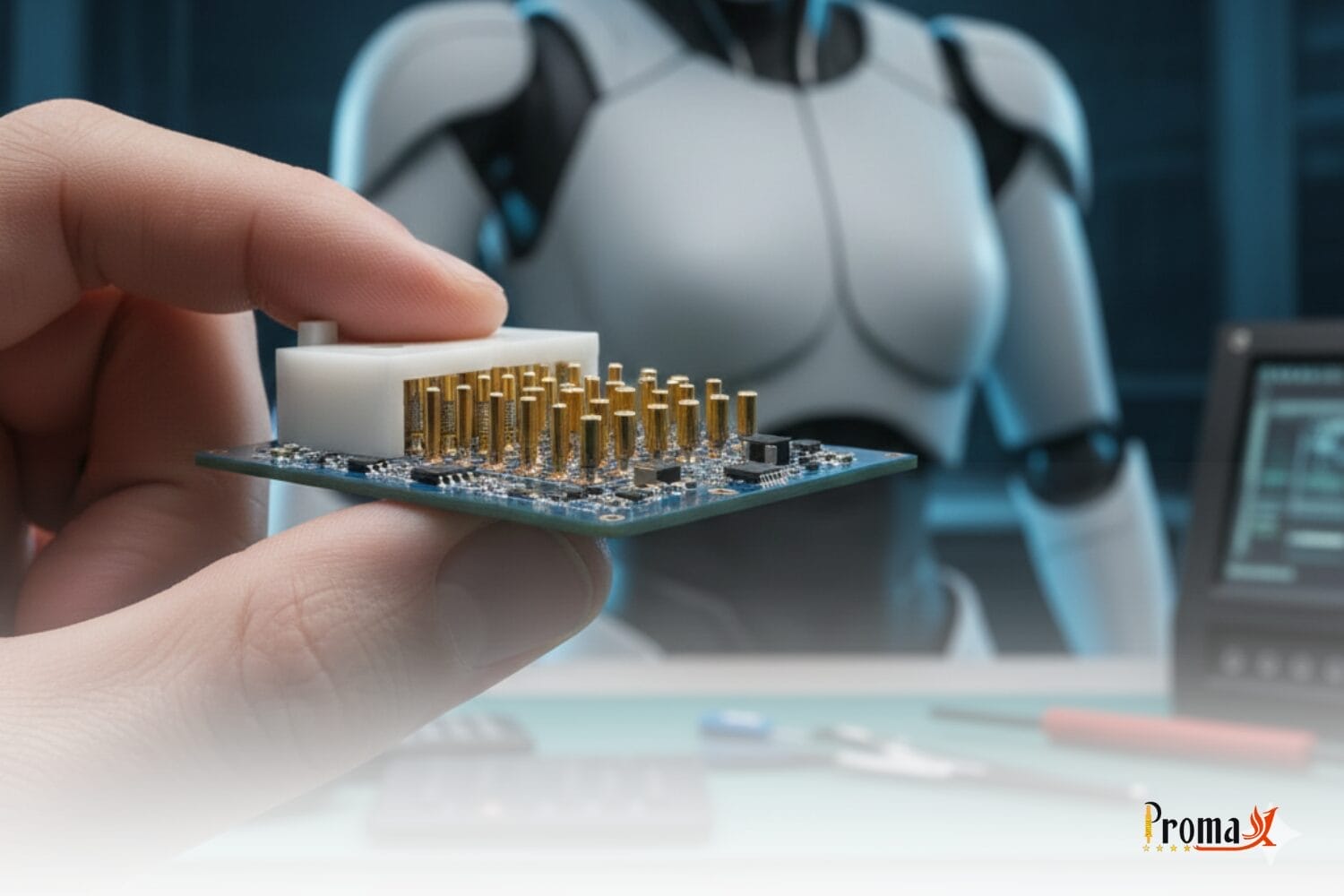

What are Robot Pogo Pins Anyway?

Robot pogo pins are spring-loaded contacts that create electrical connections through a simple but clever three-part system—a plunger that makes contact, a spring that maintains pressure, and a barrel housing that guides the movement. This design lets the connector handle motion, vibration, and slight misalignment whilst maintaining solid electrical contact, which is exactly what robotic applications need.

The spring mechanism is what makes them work reliably. When a robot docks or connects, the plunger compresses against the mating surface, and the spring keeps constant pressure on that contact point. Even if the robot shifts slightly or vibration tries to break the connection, the spring maintains contact force. This is why pogo pins can handle high cycle life—they’re built for repeated connections and disconnections without wearing out.

You’ll find robot pogo pins in any application where connection reliability matters. Tool changers use them because robots need to swap end-effectors quickly without fumbling with threaded connectors. Sensor modules rely on them for consistent data transmission even during movement. Battery docking stations use them to handle the high currents charging requires whilst maintaining communication connections. Testing environments depend on them because precision and repeatability can’t be compromised across thousands of test cycles.

Why Robot Pogo Pins Work Better for Robotics

Robot pogo pins handle the specific challenges robotic systems throw at connectors—constant movement, inevitable misalignment during docking, and vibration that never stops. Traditional solder joints can’t handle repeated connections. Magnetic connectors lack the contact pressure needed for reliable high-current transmission. Threaded connectors take too long and wear out. Pogo pins solve all these problems through their spring-loaded design.

The flexibility is what makes them practical. When a robot arm docks with a tool changer, it’s not going to hit the exact same position every single time—there’s always slight variation. Pogo pins absorb that misalignment through the spring travel, maintaining solid electrical contact even when the alignment is off by a millimeter or two. This tolerance for imperfection is essential in real-world robotics where perfect positioning is impossible to guarantee.

The spring mechanism keeps contact pressure consistent regardless of what’s happening around it. The robot vibrates during operation? The spring maintains contact. The connection shifts slightly? The spring compensates. Temperature changes cause expansion? The spring adjusts. This consistent contact pressure means reliable performance whether the robot is stationary or moving, perfectly aligned or slightly off, which is exactly what dynamic robotic environments demand.

Key Benefits of Our Robot Pogo Pins:

• High Cycle Life: Rated for tens of thousands of mating cycles, they are ideal for high-performance robotic systems.
• Resilience to Misalignment: The spring-loaded pin design compensates for slight mechanical misalignments.
• Low Contact Resistance: Ensures high signal integrity, even in high-frequency and high-current applications.
• Environmental Protection: Sealed options (IP54, IP67) are available to protect against dust, water, and other contaminants.

Key Features of Robot Pogo Pins

• Spring-Loaded Design: Ensures constant electrical contact even when subjected to mechanical stress or misalignment.
• Customizable Configurations: Available in various sizes, plating, and current ratings to meet the specific needs of your robotic system.
• Long-Lasting Durability: Designed to last through thousands of cycles, these pins designed for high-cycle environments deliver reliable connections without degradation.
• Compact and Modular: Ideal for tight spaces in robotic arms, tool changers, and other robotic systems.
• Sealing Options: Choose from IP-rated seals for protection against dust, water, and harsh environments.

How do Robot Pogo Pins Work in High-Cycle Environments?

Robot pogo pins are engineered by Promax Pogo Pin for environments where connectors must endure frequent mating cycles and physical stress. The spring-loaded mechanism ensures that the plunger maintains constant pressure on the contact surface, preventing intermittent connections. This allows robot pogo pins to reliably transmit power and signals, even in high-vibration or high-temperature environments typical of robotic operations.

Unlike traditional rigid connectors, pogo pins can absorb small amounts of misalignment, ensuring consistent electrical contact in dynamic robotic environments. Their spring-loaded contacts help reduce the risk of failure due to vibration and other external factors, ensuring that robotic systems continue operating smoothly.

Applications of Robot Pogo Pins

Robot pogo pins are used in a variety of robotic applications where reliable, high-cycle connectors are necessary. These applications include:

• Tool Changers: Automate the process of swapping robotic tools (e.g., grippers, welding equipment, or cameras) without manual wiring.
• Battery Docks: Enable charging and data synchronization for mobile robots or automated guided vehicles (AGVs).
• Sensor Modules: Provide stable electrical contact for sensors and cameras in robotic arms, improving functionality and accuracy.
• Automated Test Systems: Allow robots to interact with devices under test (DUTs) for in-circuit testing, calibration, and programming.

Why Choose Robot-Grade Pogo Pins?

Robot-grade pogo pins are specifically built to handle the challenges of continuous vibration, shock, and motion in robotic systems. These connectors are constructed with reinforced components such as stronger springs and more robust barrels, ensuring longevity in demanding robotic applications.

They feature enhanced designs to resist fatigue, provide higher current handling, and withstand the wear and tear of constant tool swapping, all while maintaining low contact resistance. This makes them an ideal choice for critical robotic tasks such as power delivery to motors and high-frequency data transmission.

How do Robot Pogo Pins Compare to Other Connectors?

When compared to other types of connectors, robot pogo pins provide several advantages in robotics. While magnetic connectors offer some self-alignment, they generally don’t handle high currents or provide the same cycle life as pogo pin connectors. Additionally, robot pogo pins are more compact and can be tailored to specific applications, unlike traditional board connectors, which are bulkier and harder to replace.

• Soldered Joints: Offer permanent connections, but fail under vibration and mechanical stress.
• Magnetic Connectors: Provide seamless alignment but are less reliable over extended cycles and can’t handle high-current applications.
• Board-to-Board Connectors: Bulky and less flexible, making them unsuitable for robotic systems requiring frequent reconfigurations.

Customizing Your Robot Pogo Pins

Customization is one of the greatest strengths of robot pogo pins. We offer a wide range of customization options to ensure your robotic system operates with the optimal connector:

• Pin Size and Shape: Tailored to fit your robot’s design constraints.
• Plating Options: Choose from gold, nickel, and silver platings based on electrical performance and environmental durability.
• Current and Voltage Ratings: Select the right rating for your system’s power and data needs.
• Sealing Options: Protect your robotic systems with IP-rated seals, ensuring long-lasting reliable connections in harsh environments.

Ordering Process for Robot Pogo Pins

1. Request a Sample: Try a Promax Pogo Pin free sample to ensure it meets your needs.
2. Choose Customization: Select the appropriate size, plating, current rating, and sealing options.
3. Place Your Order: Once you are satisfied with the sample, place your bulk order.
4. Fast Shipping: We ensure timely delivery to meet your project deadlines.
5. Ongoing Support: We offer continuous technical support to maintain your robotic systems.

Get Started with Robot Pogo Pins Today!

Robot pogo pins provide high-performance, reliable connections that are ideal for various robotic applications. From tool changers to battery docks and sensor modules, these connectors ensure seamless communication and power delivery under the toughest conditions. By choosing our high-quality spring-loaded pin solutions, you are ensuring the efficiency and longevity of your robotic systems.

Contact Promax Pogo Pin today for a free sample, or discuss your customization needs with our expert team. Let us help you achieve optimal performance in your robotic systems with robot pogo pins designed for reliability and durability.
